EDJ-601 : Stationary Louver, J Blade, 6-inch Depth
EDJ-601 : Stationary Louver, J Blade, 6-inch Depth

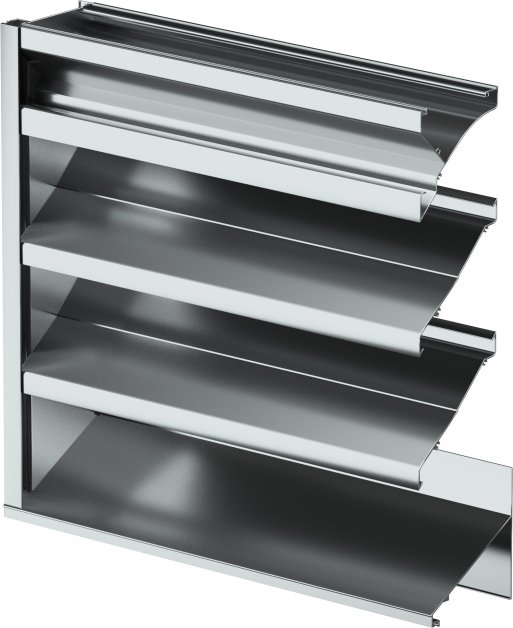

Model EDJ-601 is an extruded aluminum stationary louver engineered to protect exterior wall intake and exhaust openings while delivering clean architectural lines. Its design incorporates a drainable head, J-style blades, and a sloped sill to promote effective water shedding and dependable performance in typical weather conditions.
Product Highlights
| Blade Type |
Non-drainable
|
|---|---|
| Frame Depth (Inches) |
6
|
| Certifications |
AMCA 500-L Water Penetration and Air Performance
|
| Free Area for 4' x 4' (%) |
54
|
| Free Area for 4' x 4' (ft square) |
8.69
|
| Material |
Aluminum
|
| Minimum Size |
12 in. W x 16 in. H
|
| Maximum Single Section Size |
120 in. W x 120 in. H, Limited to 70 sq. ft.
|
| Beginning Point of Water Penetration (ft/min) |
998
|
