EDK-430 : Stationary Louver, K Blade, 4-inch Depth
EDK-430 : Stationary Louver, K Blade, 4-inch Depth

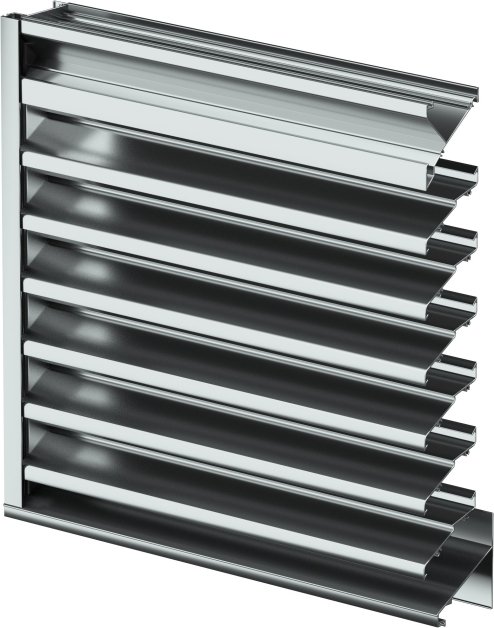

Model EDK-430 is an extruded aluminum stationary louver designed to protect exterior wall intake and exhaust openings while maintaining a streamlined architectural appearance. Featuring a drainable head, 30-degree K-style blades, and a sloped sill, the design promotes effective water shedding and reliable performance in standard weather conditions.
Product Highlights
| Blade Type |
Non-drainable
|
|---|---|
| Frame Depth (Inches) |
4
|
| Certifications |
AMCA 500-L Water Penetration and Air Performance
|
| Free Area for 4' x 4' (%) |
55
|
| Free Area for 4' x 4' (ft square) |
8.8
|
| Material |
Aluminum
|
| Minimum Size |
12 in. W x 12 in. H
|
| Maximum Single Section Size |
120 in. W x 120 in. H, Limited to 70 sq. ft.
|
| Beginning Point of Water Penetration (ft/min) |
1,002
|
Request Drawing
