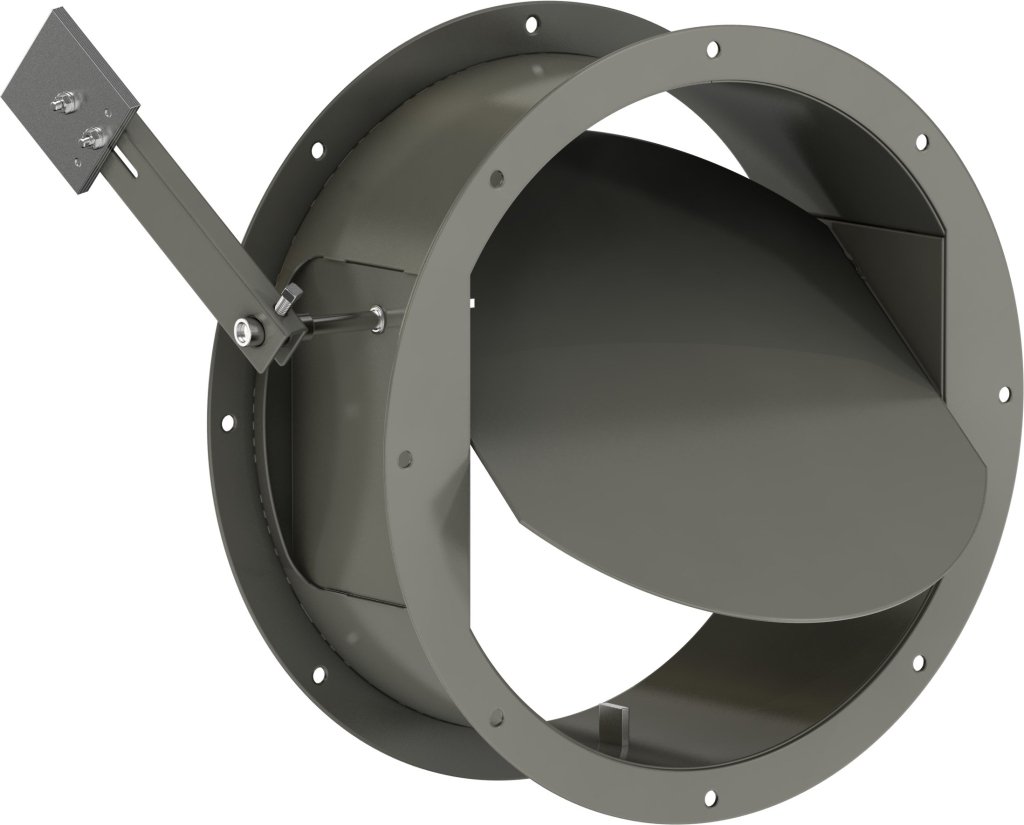

HBR-150 : Round Industrial Backdraft Damper

HBR-150 : Round Industrial Backdraft Damper

The HBR-150 is a heavy-duty round industrial backdraft damper with a flanged frame, built for demanding airflow and process applications. Designed for secure integration into round duct systems, it provides dependable one-way airflow control, allowing air intake for draft relief or preventing backflow in HVAC and industrial processes. With its robust construction and reliable operation, the HBR-150 helps protect equipment and maintain stable system performance in challenging environments.

Product Highlights

Blade Type
Butterfly
Frame Type
Flanged Channel
Maximum Pressure Rating (in. wg.)
6
Maximum Velocity (fpm)
4,000
Airflow Direction
Vertical Up
Vertical Down
Horizontal
View More Details >

Features

Blade Counterweight Frame
Standard
Optional

Select from menu to Highlight feature

Product Details

Maximum Pressure Rating (in. wg.)

6

Maximum Velocity (fpm)

4,000

Maximum Temperature (°F)

250

Blade Material

Painted Steel

304SS

316SS

Frame Material

Painted Steel

304SS

316SS

Seals

Blade

Counterweights

Yes

Documents

Drawings

Static Model File Type Action Type
Revit icon Revit .RFA eMail icon Request Drawing
3D CAD 3D CAD .DWG eMail icon Request Drawing
3D CAD 2D CAD .DWG
