FSD-212 : Combination Fire Smoke Damper
FSD-212 : Combination Fire Smoke Damper

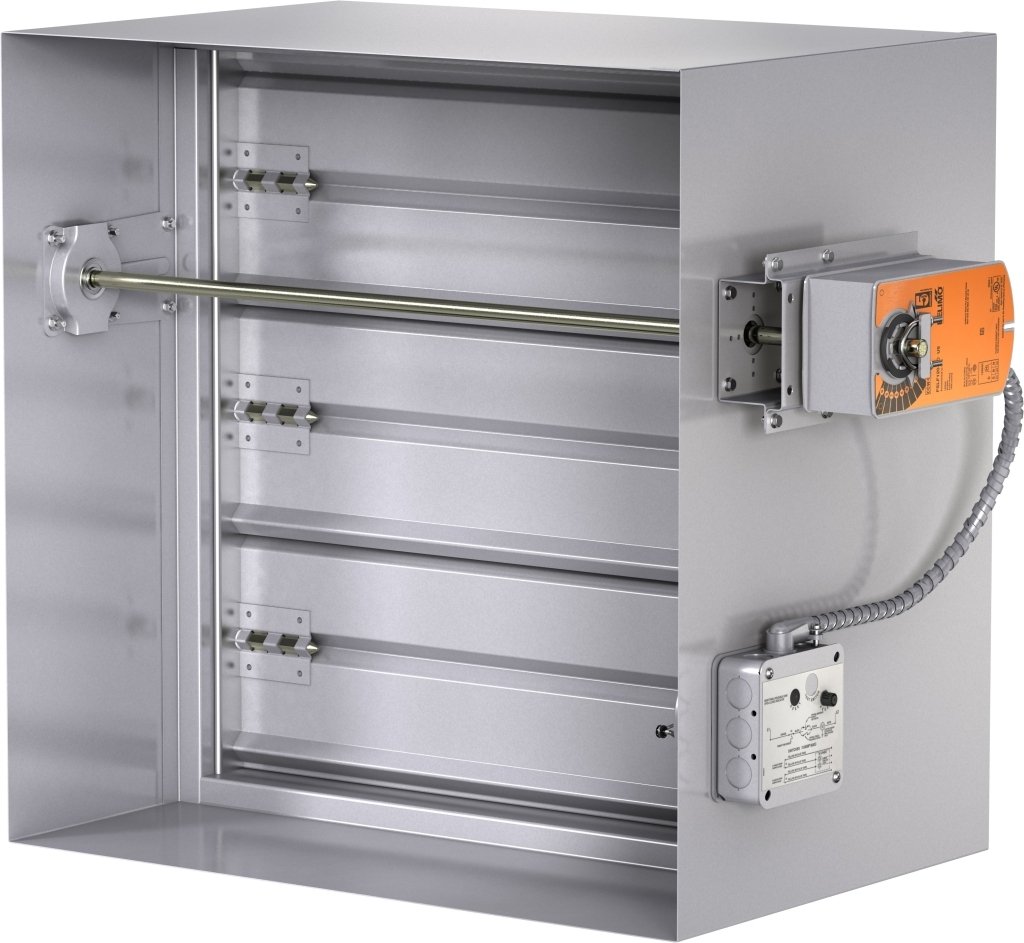

The FSD-212 is a combination fire/smoke damper with 3V blade construction, built to deliver reliable life safety performance in demanding HVAC applications. Designed for installation in walls, floors, or partitions, it provides flexibility during layout and coordination. With airflow and leakage ratings in either direction, the FSD-212 supports simplified duct routing while maintaining code compliance and system performance.
Product Highlights
| Application |
Traditional In-Wall
|
|---|---|
| Blade Type |
3V
|
| Fire Resistance Rating |
1-1/2 Hour
|
| Leakage Class |
II
|
| Maximum Pressure Rating (in. wg.) |
6
|
| Maximum Velocity (fpm) |
2,000
|
Request Drawing
