EVH-501 : Wind Driven Rain Louver, Vertical Blade, 5-inch Depth
EVH-501 : Wind Driven Rain Louver, Vertical Blade, 5-inch Depth

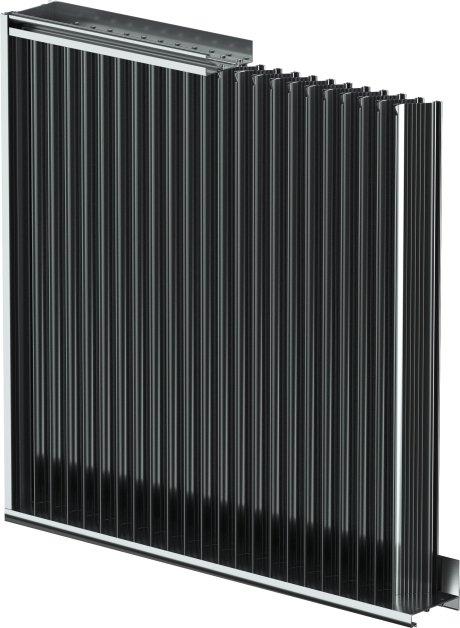

Model EVH-501 is engineered to protect exterior wall intake and exhaust openings in applications sensitive to water penetration. Its drainable head and vertical rain-resistant blades deliver exceptional resistance to wind driven rain, helping maintain building envelope integrity in challenging weather conditions.
Product Highlights
| Blade Type |
Rain Resistant
|
|---|---|
| Frame Depth (Inches) |
5
|
| Certifications |
AMCA 500-L Water Penetration, Air Performance and Wind Driven Rain
|
| Free Area for 4' x 4' (%) |
55
|
| Free Area for 4' x 4' (ft square) |
8.77
|
| Material |
Aluminum
|
| Minimum Size |
12 in. W x 12 in. H
|
| Maximum Single Section Size |
120 in. W x 120 in. H, Limited to 60 sq. ft.
|
| Beginning Point of Water Penetration (ft/min) |
1,250
|
