WD-110 : Backdraft Damper, Horizontal Mount
WD-110 : Backdraft Damper, Horizontal Mount

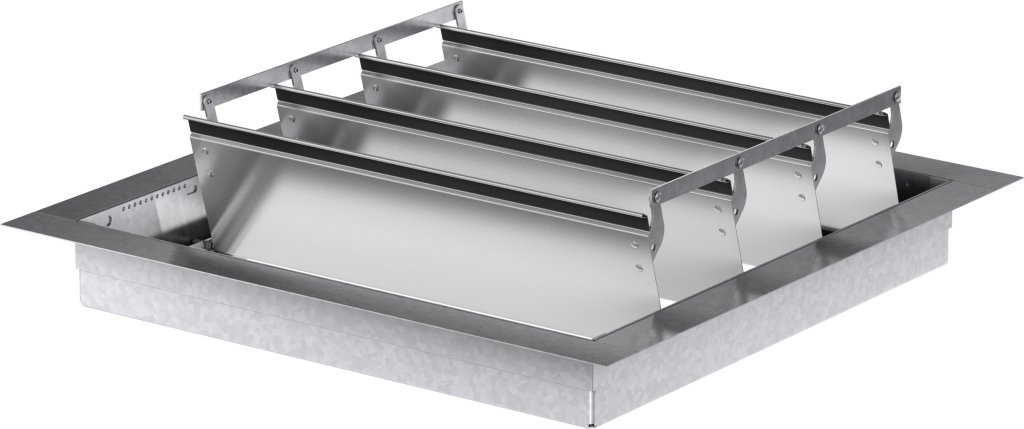

The WD-110 backdraft damper is designed for horizontal mounting to permit vertical upward airflow while preventing reverse flow when airflow stops. Featuring a discharge flange for secure duct connection, it integrates easily into vertical airflow applications. The damper opens in response to differential air pressure, assisted by springs for responsive performance, and closes by gravity to maintain system integrity. An optional motorpack is available to convert the WD-110 to motorized operation, offering added flexibility for controlled airflow applications.
Product Highlights
| Airflow Direction |
Vertical Up
|
|---|---|
| Blade Material |
Aluminum
|
| Frame Material |
Galvanized Steel
|
| Maximum Pressure Rating (in. wg.) |
1
|
| Maximum Velocity (fpm) |
2,500
|
| Mounting Orientation |
Horizontal
|
Request Drawing
